Putting it All Together: Using a Deviation Template to Populate a Risk Worksheet

For quick entry of different causal lines in risk assessment worksheets, use deviation templates to auto-populate guideword/parameter pairs.

1. From Hazards & Risks > (Assessments) Worksheets, open the risk worksheet you want to work with.

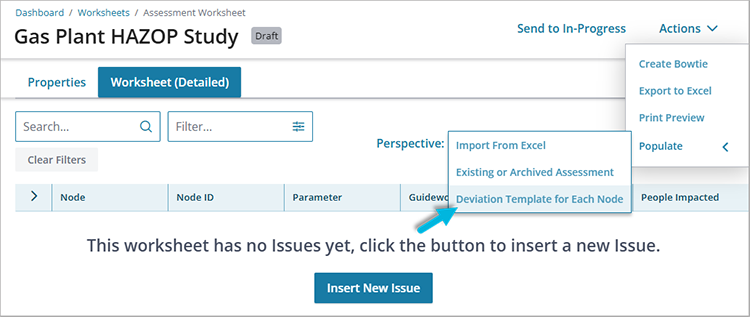

2. From the Actions menu at the top, select Populate > Deviation Template for Each Node.

3. Select a Node(s) and Deviation Template(s) > Populate.

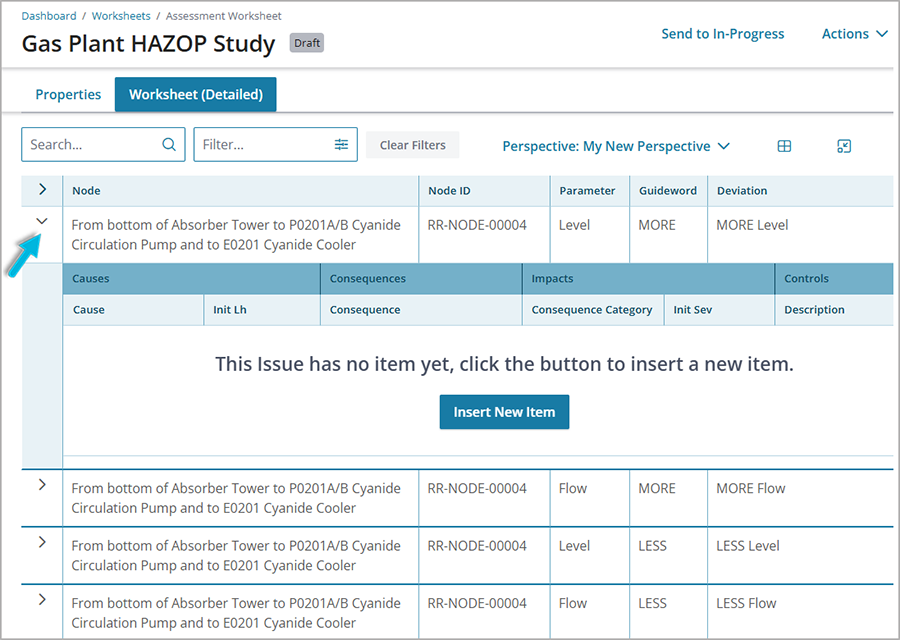

4. When you see the Data Upload Successful message, click View to refresh the screen. You’ll see a new line in the worksheet (labeled with the selected node) for each guideword/parameter pair generated for the selected deviation template. For each line, you can enter multiple causal lines. To get started with data entry, select the down-arrow.


For more about risk assessment worksheets, see Creating and Completing a Risk Assessment Worksheet.
